Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BSD
  • Model Number: QYJYFTTX
  • Insulation Material: PFA
  • Type: Low Voltage
  • Application: submersible,Oil-field
  • Conductor Material: Copper
  • Jacket: Fluoroplastic
  • Number of cores: 3 cores
  • Cross-sectional area: 10-20mm2

Packaging & Delivery

Packaging Details: Wooden drum or according to your need
Delivery Detail: According to your quantity

Specifications

1.Oil-submersible pump extension cable
2.Rated voltage:1.8/3-3.6/6kv
3.We are manufacturer
4.Best price and high quality

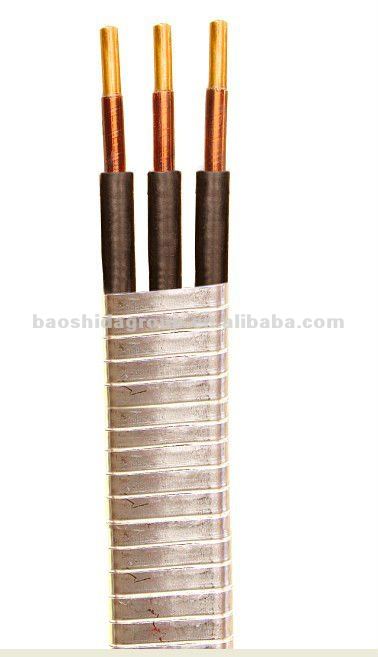

Electric submersible pump Extension Cable

Standard:
•The product is manufactured according to the standard GB/T 17650-2008.
Application:
•This cable is suitable voltage level is less than 3kv of electric submersible pump unit and connection of ground control cabinet power supply cable to connect the matching.
Operating characteristics:
•Cables Rated Voltage:1.8/3-3.6/6kv
•Cable's normal operating temperature between 90-250°c
•Cable minimum bending radius of not less than 30 times the thickness of cable
Production range and cable
TypeCross-sectional areaCore number
All  type10-20mm²3
Main characteristics and parameters
Voltage levelUnblanced rate of the direct current resistance%Length tolerance kmDirect leakage current 15.6°cΩ/km5 min capability of pressureInsulation resistance Ω/km
3kv≤2 5‰ ≤15uA/km 27kv/5min ≥2000
